JSW Wire Rods

Manufactured in state-of-the-art wire rods mills (WRMs) at Vijayanagar, our wire rods have a wide range of applications across industries.

The low, medium and high carbon grades, electrode grade and CHQ grade are produced at Vijayanagar, while Salem Works produces alloy and special grade wire rods. By employing the latest technology, we ensure all our products are of superior quality, with consistent properties and dimensional accuracy.

Features

  • High-speed wire rod mills (120 mtr/sec)
  • Excellent mechanical and consistent chemical properties
  • Low Sulphur and Phosphorous content (0.005%-0.035%)
  • Low tramp elements
  • Dimensional accuracy guaranteed by an automated thickness control system using advanced numerical models

Key Industries

Power

Power

Automotive

Automotive

Infrastructure

Infrastructure

Fencing

Fencing

Garden Mesh

Garden Mesh

Others

Others

Wire Rod Applications

Automobile

Automobile

General engineering

General engineering

Cold drawing

Cold drawing

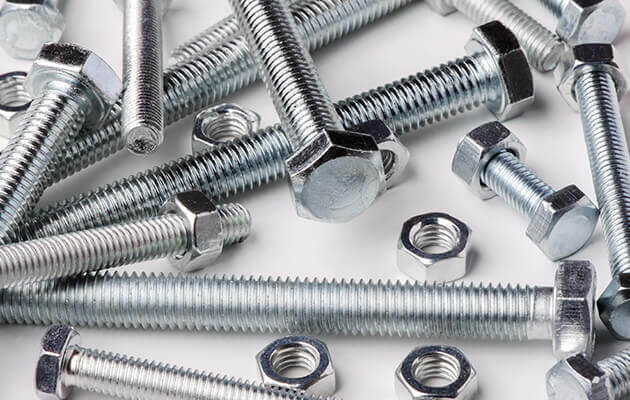

Cold forming

Cold forming

Spring applications

Spring applications

Welding

Welding

Wire Ropes

Wire Ropes

Tools

Tools

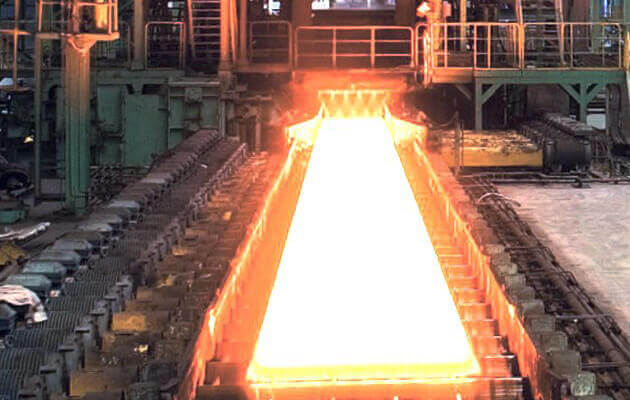

Heat Treatment

Heat Treatment

Machining

Machining

Bearings

Bearings

Jewellery and Cosmetics

Jewellery

Grades & Specifications

Product Specifications
Coil Particulars
Inner Diameter 750 mm min.
Outer Diameter 1250 mm max.
Coil Height 2 meter max.
Coil Weight Coil Weight
Packaging 4 Steel Straps Binding (min)
Supply Specifications
Surface Defects 1.0% of Diameter (max.)
De-Carburization 1.0% of Diameter (max.)
Internal Soundness Free from Pits, Seams, Blow holes, etc.
Supply Condition As per TDC
Control in UTS 60 N/mm2 (6Kg/mm2, within a ring) for High Carbon
Dimensional Tolerance
Diameter (mm) Tolerance (mm) Ovality (mm)
5.5 to 8.50 +/- 0.20 0.30 max
9.00 to 14.00 +/- 0.25 0.40 max
14.50 to 25.00 +/- 0.30 0.40 max
Size Range (in mm)
5.5 / 6.5 / 7 / 8 / 9 / 10 / 11 / 12 / 14 / 16 / 18 / 20 / 22 / 25
Grades
Low carbon Wire Rod grades Download Brochure of JSW Steel Wire Rods

Download Brochure
Medium carbon Wire Rod grades
High carbon Wire Rod grades
Welding Electrode Wire Rod Grades
JSW Neosteel TMT Wire Rod grades Download Brochure of JSW Steel Wire Rods

Download Brochure
